There are two distinct control modes when editing a model in Jig, Object Mode {icon-object-mode.svg} and Sub-object Mode {icon-sub-object-mode.svg}. One object can be comprised of multiple sub-objects. This allows you to preform edits on sub-objects independently to the larger object group.

Object Mode

When in Object Mode {icon-object-mode.svg} you will be able to perform edits on your selected object as a whole. When you rotate and texture an object these changes will effect every sub-object that makes up your model.

This can be useful when moving an object in your Jig. If these components (Sub-Objects) would be joined together in the real world you'll want them to animate together.

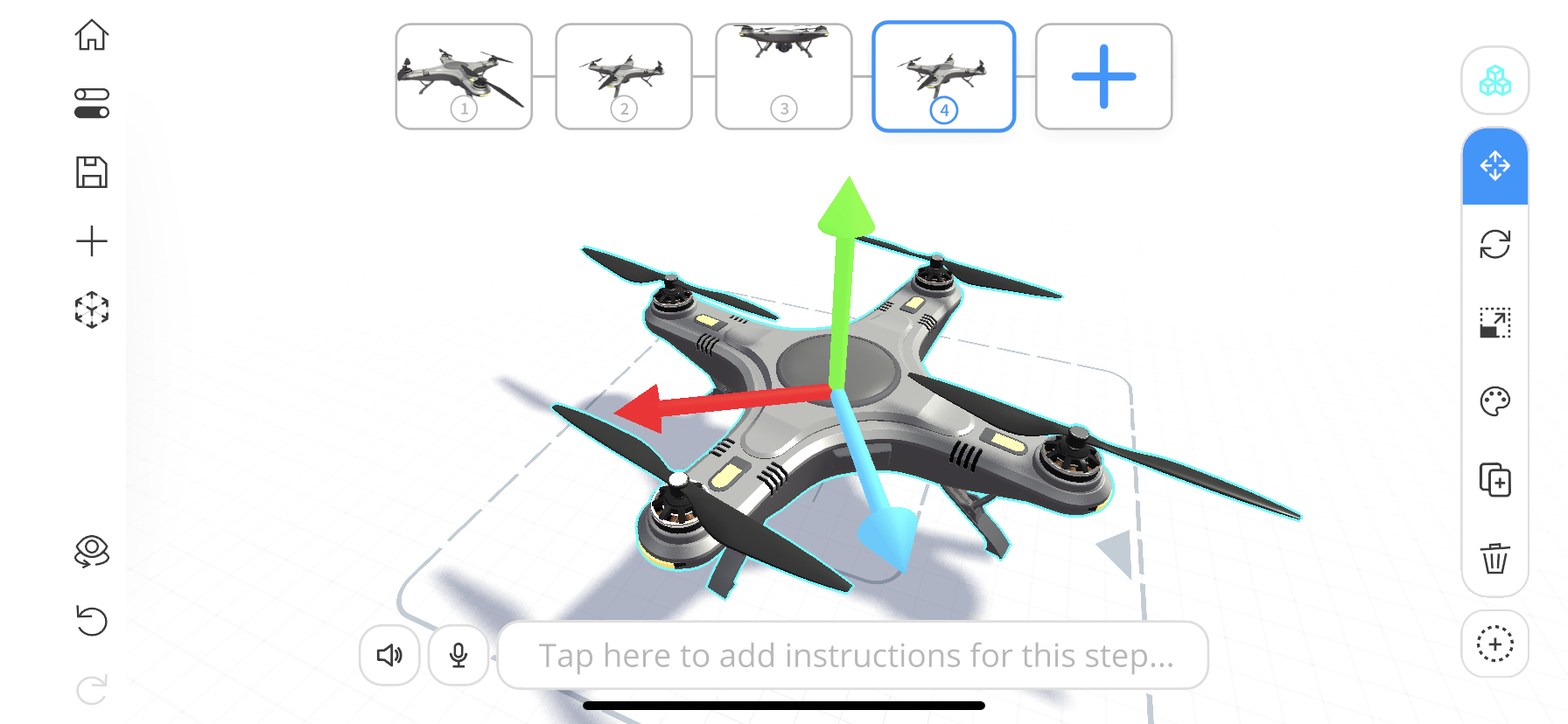

Object mode view
Object Mode

In Object Mode {icon-object-mode.svg} you will find that the additional Duplicate {icon-duplicate.svg} tool. This can be used to quickly populate your Jig with duplicates of your selected object.

Sub-object Mode

In Sub-object Mode {icon-sub-object-mode.svg} you can treat each individual mesh as its own editable component. Adding different materials to the sub-objects of a model will allow you to define what these different components are made out of. By pulling the sub-objects apart you can show an in-depth look at how they combine and work together.

Sub-Object mode view
Sub-Object Mode

Sub-object mode {icon-sub-object-mode.svg} has the additional Label {icon-label.svg} tool. This allows you to label each individual sub-object. This can be incredibly useful at keeping track of the components parts names.

Note: If an object has no sub-objects that object will have the Label {icon-label.svg} tool available in object mode.
