There is no need to spend hours or days to make a great product demonstration from your CAD files.

Watch the tutorial below on how to transform a CAD file of a coffee machine into a realistic AR presentation in under 5 minutes using JigSpace.

Download Icon
JigSpace project file

Download this free Jig file to follow along — step by step — with the tutorial.

Jig App Logo
New to JigSpace?

Download the latest version of JigSpace to get started

To get started

1. Download files by entering email above or long pressing file link here and select 'Open Link': Coffee Pod Machine.obj

2. From My Jigs menu, Create a new Jig.

3. Click  +  button and 'My 3D objects' > 'Use my own 3D objects'.

4. Locate on your device the saved OBJ file that you downloaded above.

5. Follow the video, pausing it where necessary to learn and repeat each step.

Process Guide

The process of creating a Jig can vary depending on the complexity of you 3D models and the information you want to discuss. Here we have broken down the basic process of creating a Jig into 10 easy to follow step.

1. To start off with load your 3D model into the Jig scene.

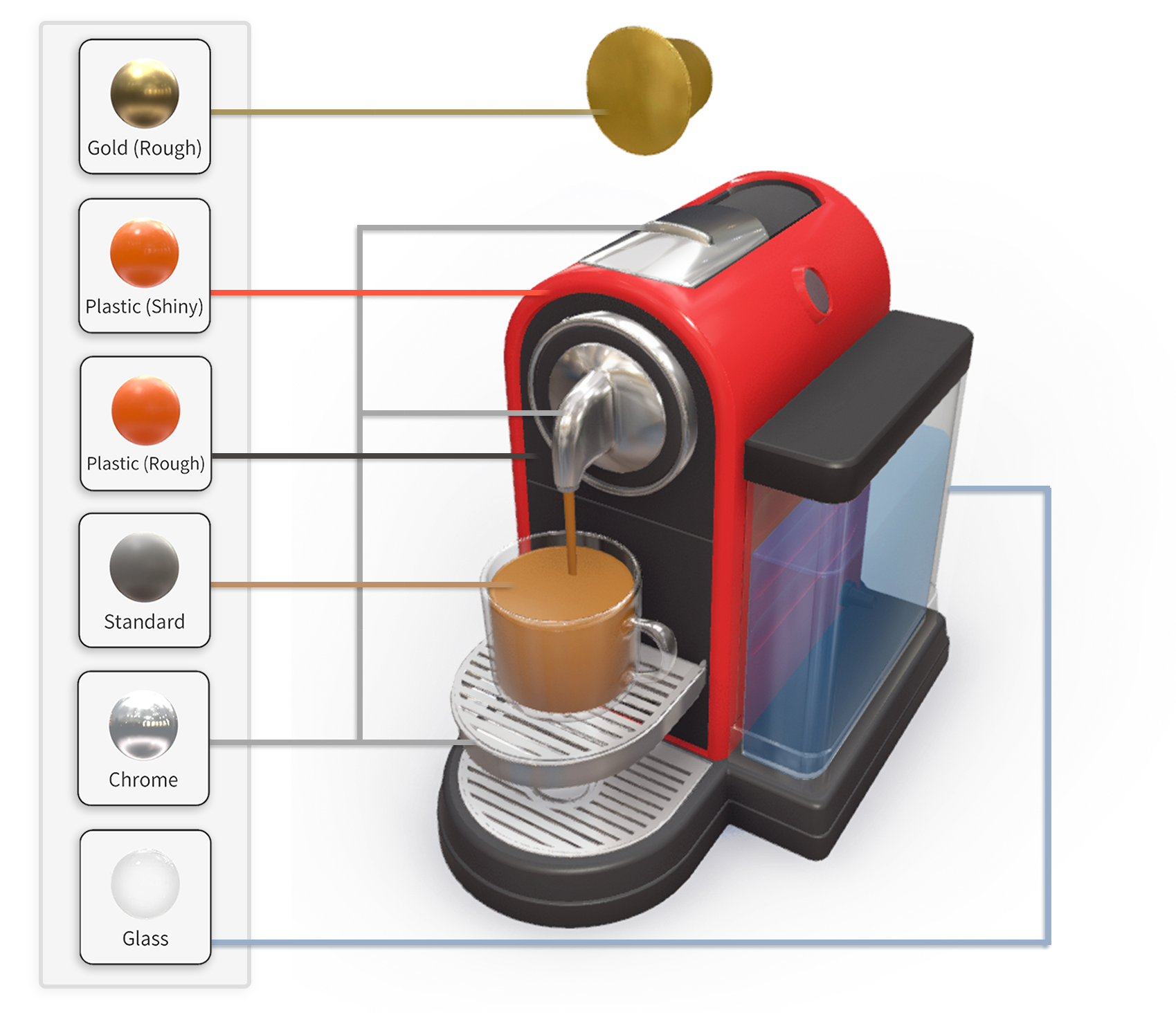

Materials Key

2. Next add materials and colors to your model.

3. Add labels to the important components and fill in relevant information.

4. Create a new Step on the timeline.

5. On this step edit a component of your model (move/scale/rotate the object/sub-object, turn on its label).

6. Fill in the bottom textbox with interesting information relating to the featured component.

7. Repeat steps 4 to 6 until you've explored and discussed the focus of the Jig.

8. Check your Jig out in AR Mode {icon-ar.svg}.

9. Go to the info panel and fill in any important information (Title, Description) and take a Thumbnail Picture.

10. Go to the bottom of the info panel and turn ON public link sharing; then press share to generate a sharable link. You can then share this link with colleagues and friends for them to view your Jig in AR. (Only those with this private link will be able to view your Jig. A jig can NOT be edited using a shared Jig link.)

And just like that you have a beautiful new Jig

Desktop application

This Jig was created using the Jig Pro desktop application, but can also be completed on iPhone or iPad.

The desktop computer app, on Mac and Windows, is available for download on a Pro subscription, and also features STEP file and SolidWorks file imports, 300Mb upload limits and so much more.

For further resources visit Importing 3D Models and CAD Files.
