Adding Labels

Labels can be a great way to pack a Jig full of interesting information. A label can be added to every Object or Sub-object in a scene, which allows you to add in an Object's name or interesting facts and features.

To add a Label to an Object:

  1. Tap to select your chosen Object or Sub-object, then tap the Label tool {icon-label.svg} in the toolbar.
  2. Tap and fill in the empty text box with any relevant information.

Note: You can only Label an object in Object Mode {con-object-mode.svg} if there are no Sub-objects {icon-sub-object-mode.svg}.

Once a label is assigned, when the object is tapped in either the workshop for editing or in AR Presentation mode, the label will appear for 2 seconds.

Displaying Labels

Labels can be useful for highlighting the focus of a Step. To do this you can permanently turn on an Object's Label per Step.

To Always Show a label during a Step:

  1. Tap to select your chosen Object or Sub-object, then tap the Label tool {icon-label.svg} in the toolbar.
  2. Below the text box, tap on the Always Show box.
  3. This will make the Label permanently visible on this Step.

Note: You can only Always Show a label if there is text in the label text box.

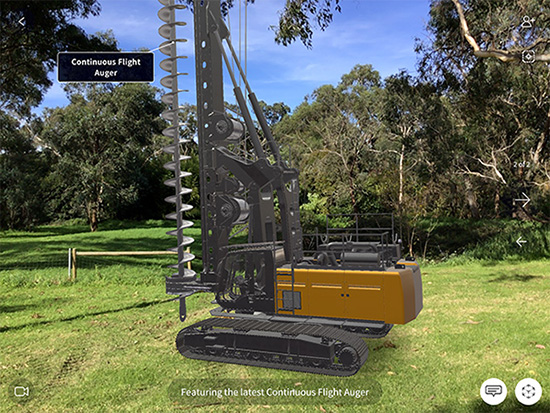

Drill Rig Labels Smaller
Download Icon
JigSpace project file

Download this free Jig file to follow along — step by step — with the tutorial.

Jig App Logo
New to JigSpace?

Download the latest version of JigSpace to get started

Replicate Labels

If a model has labeled components naming them, it is convenient to have these labels on every step of the Jig.

To Replicate Labels across the Timeline:

  1. Tap to select your chosen Object or Sub-object.
  2. Press and hold down on the Label tool {icon-label.svg} . (This will open the replicate tool)
  3. Select the Across All Steps {icon-all.svg} button from the replicate tool.

Note: If you have the Always Show box ticked when replicating across all steps all your steps will have this turned on.
