When editing multiple models in your Jig you can perform mass changes on groups of them using Multi-Select {icon-multiselect.svg}. Multi-Select can quickly speed up your Jig building process and can be used on both Objects and Sub-objects.

When in the multi select menu every object or sub-object you tap on will be added to the selection group; You can deselect an object from the group by tapping it again. Once you have a group of objects selected you can press Confirm Selection {} and then edit the objects as a group. To end the group selection tap off the group.

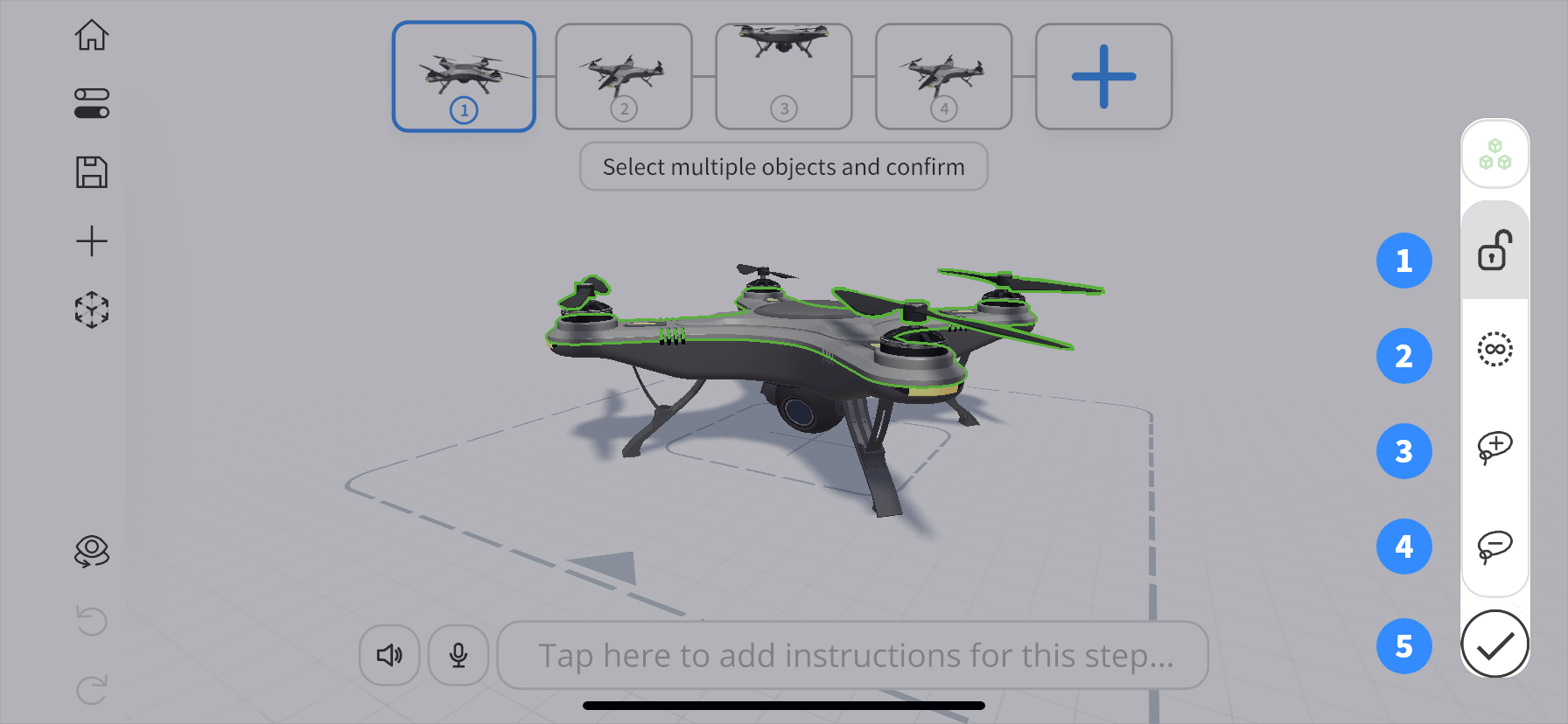

Image showing where is Tool bar in a Jig file.

{#1} Lock Group

Once you have selected all the objects or sub-objects you want to edit as a group, tap the Lock Group {icon-unlocked.svg} to join them together. This group will stay locked together until you save and close your Jig or press the Lock Group {icon-locked.svg} again to unlock them.

{#2} Select All

If you are in object mode {icon-object-mode.svg} this will select every object in the Jig. If you are in sub-object mode {icon-sub-object-mode.svg} it will select every sub object in the scene.

{#3} Lasso Select

Lasso Select {icon-lasso-select.svg} allows you to draw an outline around the objects you want to select. Press and hold on the screen to draw the loop. When you release the loop will complete the selection.

{#4} Lasso Deselect

Lasso Deselect {icon-lasso-deselect.svg} allows you to draw an outline around the objects you want to remove from a selection group. Press and hold on the screen to draw the loop. When you release the loop will complete the deselection.

{#5} Confirm Selection

When you are happy with the groups you have selected press Confirm Selection {icon-ok.svg} and you will be able to perform mass edits to your objects as a group.

To learn more about the multi-select tool, visit the Tutorial.
